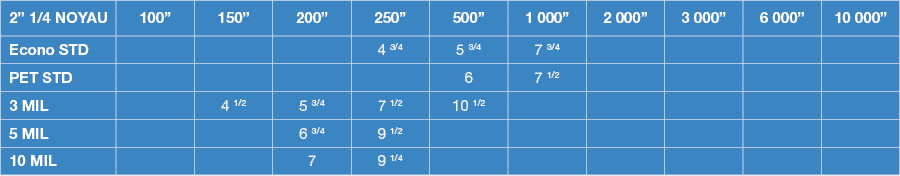

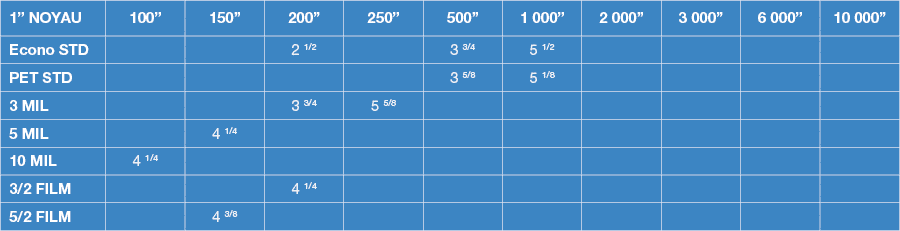

CALCULATING TABLES FOR ROLLS DIAMETER

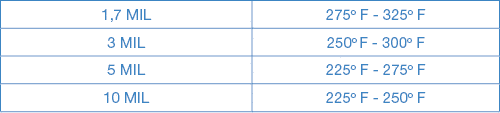

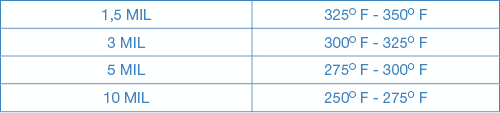

TEMPERATURE CHARTS FOR LAMINATING WITH THERMAL FILMS
CLEAR ECONO
POLYESTER (PET) CLEAR, MATTE ET AGRESSIVE
Data valid for hot shoe rolling mills
Variable temperature according to speed, voltage and type of rolling mill
WIDE FORMAT
Temperature for low temperature film with heated rollers (180°F - 200°F)
Heat Press Mounting Fabrics
(180°F - 200°F)
HOW TO CALCULATE FOR FILMS ROLLS
1- THE NUMBER OF ROLLS REQUIRED
a) Number of prints X print length (in inches)= Total
b) Total in inches / 2 = Number of feet
c) Number of feet / standard roll size = Number of rolls (X2 to encapsulate)
Example :
a) 100 X 48'' = 4800
b) 4800'' / 12' = 400 ft
c) 400' / 250' = 1.6RL (2) one side - 3.2RL (4) two sides
2- MSI CALCULATION PER ROLL
Film width X Roll length X .012 = Total of MSI X price of MSI
Example :
38'' X 250' X .012 = 114 MSI X MSI price
(Total of roll price)
3- CALCULATION OF THE PRICE PER SHEET
Film width X sheet size / 1000 X MSI price = Printing cost
Example :
Film 3/2 PET 38” X 250'
image size : 36” X 48” MSI cost 2.15 $
(38 x 48) / par 1 000 X 2.15 =
3.92 for one side - 7.84 for two sides
